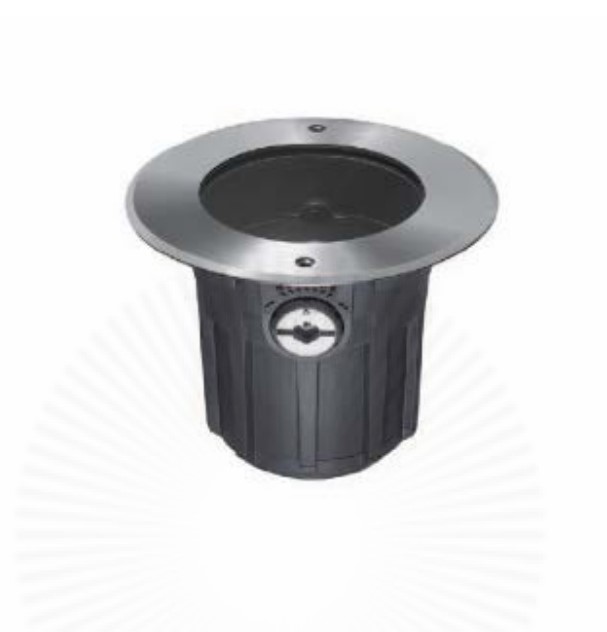

INGRR SM

INGRR is a recessed LED in-ground Compact drive-over and walk over in-ground recessed LED luminaire designed for the signalization of streets, cycle lanes, and pedestrian ways and facade lighting. with different diameters, wattage, lumen, beam angle, CRI, and CCT option.

SKU: INGRR XL-2-1 Categories: ,

Description



TypeIn-ground Up-light
InstallationRecessed
HousingDie-cast Aluminum with Stailess
Steel 316
ProcessingPowder Coated
DiffuserSafety Glass with Anti – Glare
Special Lens
Light Emission DirectionSymmetrical
Glow wire test850º
Safety ClassII
Direct Mounting on Normal Flammable SurfaceYes
Driver IncludedBuilt-in
Adjustable+/- 25°



DOWNLOADS:

Data Sheet ⬇, Certificates ⬇



Available Options:

Code No.System Power

(W)

Lumen Output (lm)Luminaire Efficacy (lm/W)CRI
INGRR-6W 6630105>90
INGRR-6W 8840105>90
  INGRR-10W 101050105>90
  INGRR-12W 121260105>90
  INGRR-15W 151575105>90
  INGRR-18W 181890105>90
  INGRR-20W 202100105>90
  INGRR-25W 252625105>90
   INGRR-30W 303150105>90

Color Temperature:

Finish option:



Control Options:

1DDDALI DIM
2D10-10V DIM
3PDPhase Cut DIM

LED Chips:
