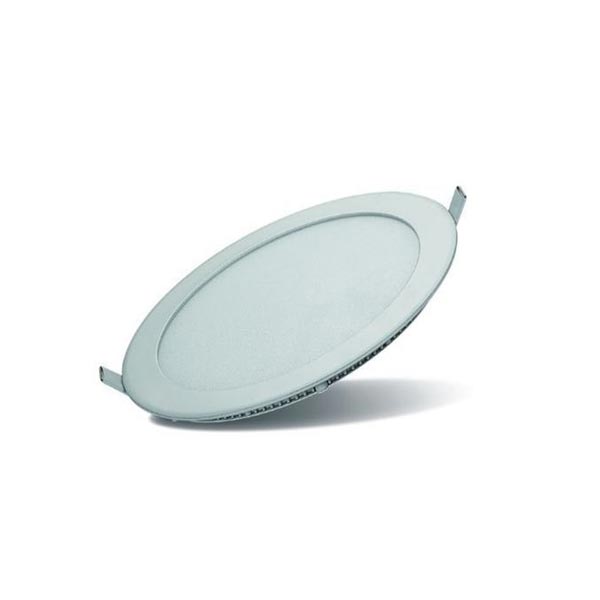

PDLR

PDLR is a recessed LED slim downlight with an opal polycarbonate diffuser for high-quality uniform lit appearance, relevant performance, and ease of installation. adaptable to all kinds of modular ceilings and plaster with
different diameters, wattage, lumen, beam angle, CRI, and CCT option.

SKU: PDLR Categories: ,

Description



TypeDownlight
InstallationRecessed
HousingDie-cast Aluminium
ProcessingPowder Coated
DiffuserOpal Polycarbonate
Light Emission DirectionSymmetrical
Glow wire test850º
Safety Class I
Direct Mounting on Normal Flammable SurfaceYes
Driver IncludedRemote
AdjustableFixed

DOWNLOADS:

Data Sheet ⬇, Certificates ⬇.

Available Options:

Code No.System Power

(W)

Lumen Output (lm)Luminaire Efficacy (lm/W)CRI
PDLR-10W 101050105>90
PDLR-12W 121260105>90
PDLR-16W 161680105>90
PDLR-18W 181890105>90
PDLR-20W 202100105>90
PDLR-22W 222310105>90
PDLR-25W 252625105>90
PDLR-30W 303150105>90

Color Temperature:

Beam Angle Option:

Finish option:

Control Options:

1DDDALI DIM
2D10-10V DIM
3PDPhase Cut DIM

LED Chips:

LED Drivers:
